Exploring MF55 NTC: Excellent Performance and Diverse Applications

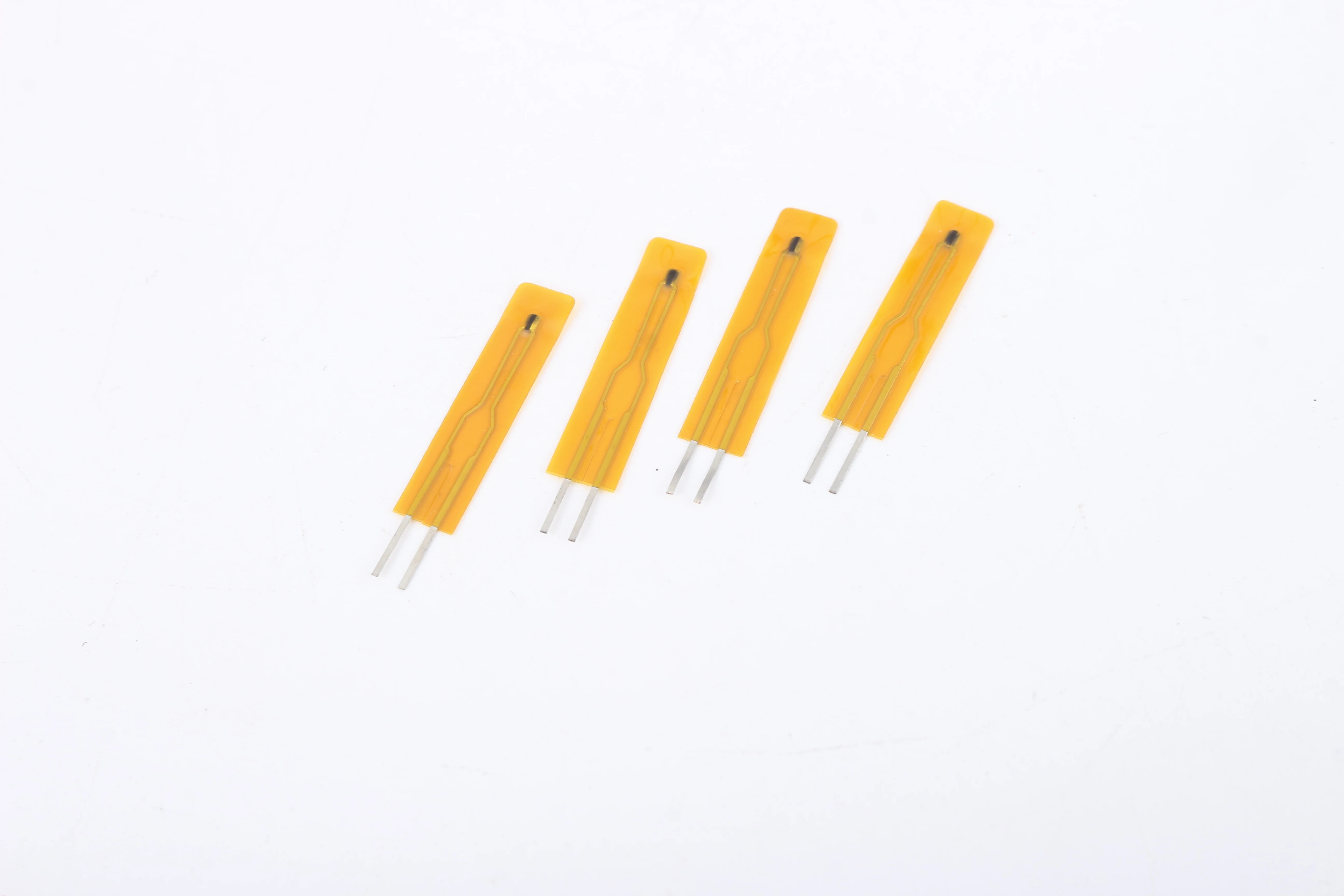

1. Ultra-small Size, Suitable for Narrow Spaces: The MF55 series features an ultra-thin design, with a thickness of only about 0.60mm, a width of 3.6mm, and total lengths of 25mm and 50mm available for selection. This compact size enables it to easily fit into various narrow spaces, whether it is the compact layout inside electronic devices or special application scenarios with space restrictions. It provides the possibility for the design of more miniaturized and integrated electronic products.

2. Fast Response, Accurately Capturing Temperature Changes: This thermistor has an extremely fast response time and can quickly respond to temperature changes. In some applications sensitive to temperature changes, such as rapid temperature monitoring systems, it can sense temperature fluctuations in a very short time and convert them into electrical signals for output, ensuring the timely acquisition of accurate temperature information and providing a reliable basis for subsequent control or processing.

3. High Stability, Long-term Reliable Operation: The MF55 NTC has excellent stability. During long-term use, its resistance value is less affected by external factors and can always maintain stable performance. This makes it perform excellently in various devices that require long-term stable operation, reducing equipment failures caused by fluctuations in component performance and greatly improving the reliability and service life of the system.

4. High-precision Measurement, Precise Control of Resistance and B-value: Its resistance accuracy can reach various levels such as F (±1%), G (±2%), H (±3%), J (±5%), K (±10%), and the B-value accuracy also has options like F (±1%), G (±2%), H (±3%), J (±5%). This high-precision characteristic ensures that in temperature measurement and control applications, temperature signals can be accurately converted into corresponding resistance values, providing strong support for achieving precise temperature regulation.

5. Good Insulation, Safety Guarantee: It adopts an insulating film package, with excellent insulation performance, and can be used safely even in complex environments that may come into contact with electrodes. This characteristic not only ensures the normal operation of the equipment but also improves the safety during use and reduces potential safety hazards caused by electrical insulation problems.

6. Compliance with Environmental Protection Standards: The MF55 series complies with the RoHS directive, which means that the use of harmful substances is strictly controlled during production, reducing environmental pollution. It reflects the product's advantages in environmental protection and makes it more in line with the requirements of modern society for green electronic products.

1. Resistance at 25°C: A variety of options are available, such as 10² = 10×10² = 1,000Ω, 10³ = 10×10³ = 10,000Ω, 10⁴ = 10×10⁴ = 100,000Ω, etc., to meet the resistance requirements of different application scenarios.

2. Resistance Accuracy and B-value Accuracy: As mentioned earlier, both resistance accuracy and B-value accuracy have multiple levels to choose from. Users can flexibly select appropriate product specifications according to the accuracy requirements of specific applications.

3. Operating Temperature Range: The general operating temperature range is -40 ~ +125°C, which can adapt to a relatively wide temperature environment. It can work normally both in cold low-temperature environments and hot high-temperature environments, ensuring its applicability in different climatic conditions and industrial environments.

• Computers and Printers: On computer motherboards, the MF55 NTC is used for space temperature detection to ensure that all components of the motherboard work within an appropriate temperature range, avoiding performance degradation or hardware damage due to overheating. In printers, it can be used for temperature measurement and control to ensure that the print head works at a suitable temperature, achieving high-quality printing results and preventing failures caused by overheating of the print head.

• Household Appliances: It is widely used in temperature control and detection of various household appliances. For example, in air conditioners, it is used to monitor indoor and outdoor temperatures, providing a basis for temperature regulation of air conditioners, achieving precise temperature control, and improving user comfort; in induction cookers, it can monitor the surface temperature in real-time to prevent safety issues caused by excessive temperature and ensure temperature stability during cooking to improve cooking effects.
