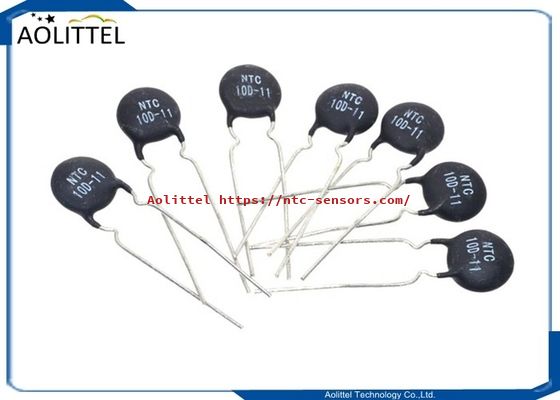

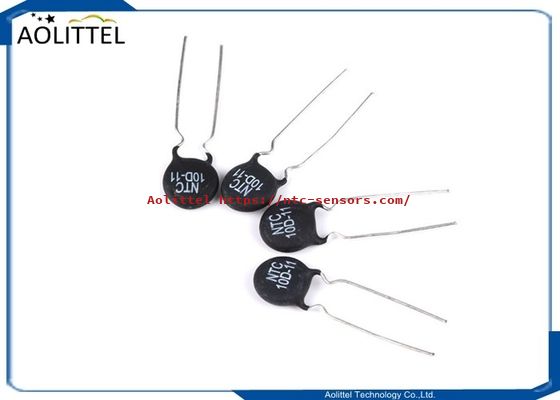

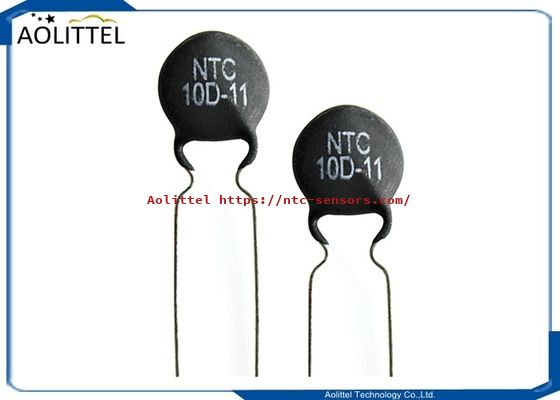

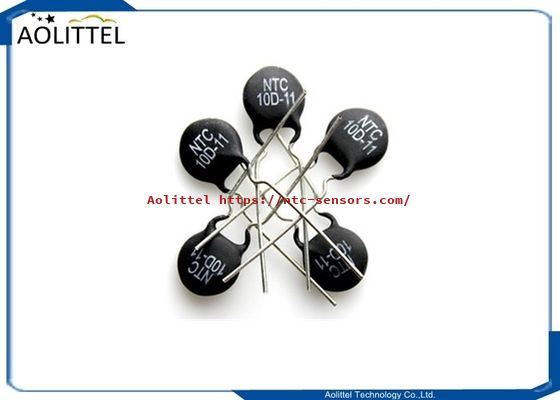

Inrush Current Suppressors 10D-11 Disc NTC Thermistor 11mm 3A 10 Ohm +/-20% 10D11 P7.5mm
Parameters of Inrush Current Limiter Thermistor MF 72 NTC Series
| P/N | R25(Ω) | R tolerance | Imax(A) | IB(A) | RS(Ω) | δ(Mw/℃) | τ(Sec) |
| 5D | |||||||
| 5D-5 | 5 | ±20% | 1 | 2 | 0.353 | 6 | 20 |
| 10D-5 | 10 | ±20% | 0.7 | 1.4 | 0.771 | 6 | 20 |
| 15D-5 | 15 | ±20% | 0.6 | 1.2 | 0.9 | 6 | 20 |
| 22D-5 | 22 | ±20% | 0.6 | 1.2 | 0.9 | 6 | 20 |
| 33D-5 | 33 | ±20% | 0.5 | 1 | 1.2 | 6 | 20 |
| 47D-5 | 47 | ±20% | 0.4 | 0.8 | 1.5 | 6 | 20 |
| 68D-5 | 58 | ±20% | 0.4 | 0.8 | 2.1 | 6 | 20 |
| 200D-5 | 200 | ±20% | 0.1 | 0.2 | 6.259 | 6 | 20 |
| 9D | |||||||
| 3D-9 | 3 | ±20% | 4 | 8 | 0.12 | 11 | 35 |
| 4D-9 | 4 | ±20% | 3 | 6 | 0.19 | 11 | 35 |
| 5D-9 | 5 | ±20% | 3 | 6 | 0.21 | 11 | 34 |
| 6D-9 | 6 | ±20% | 2 | 4 | 0.315 | 11 | 34 |
| 8D-9 | 8 | ±20% | 2 | 4 | 0.4 | 11 | 32 |
| 10D-9 | 10 | ±20% | 2 | 4 | 0.458 | 11 | 32 |
| 12D-9 | 1 | ±20% | 1 | 2 | 0.652 | 11 | 31 |
| 16D-9 | 16 | ±20% | 1 | 2 | 0.802 | 11 | 30 |
| 20D-9 | 20 | ±20% | 1 | 2 | 0.864 | 11 | 30 |
| 22D-9 | 22 | ±20% | 1 | 2 | 0.95 | 11 | 30 |
| 30D-9 | 30 | ±20% | 1 | 2 | 1.022 | 11 | 30 |
| 33D-9 | 33 | ±20% | 1 | 2 | 1.124 | 11 | 30 |
| 50D-9 | 50 | ±20% | 1 | 2 | 1.252 | 11 | 30 |
| 60D-9 | 60 | ±20% | 0.8 | 1.6 | 1.502 | 11 | 30 |
| 80D-9 | 80 | ±20% | 0.8 | 1.6 | 2.01 | 11 | 30 |
| 120D-9 | 120 | ±20% | 0.8 | 1.6 | 3.015 | 11 | 30 |
| 200D-9 | 200 | ±20% | 0.5 | 1 | 5.007 | 11 | 32 |
| 400D-9 | 400 | ±20% | 0.2 | 0.4 | 9.852 | 11 | 32 |
| 11D | |||||||
| 2.5D-11 | 2.5 | ±20% | 5 | 10 | 0.095 | 13 | 43 |
| 3D-11 | 3 | ±20% | 5 | 10 | 0.1 | 13 | 43 |
| 4D-11 | 4 | ±20% | 4 | 8 | 0.15 | 13 | 44 |
| 5D-11 | 5 | ±20% | 4 | 8 | 0.156 | 13 | 45 |
| 6D-11 | 6 | ±20% | 3 | 6 | 0.24 | 13 | 45 |
| 8D-11 | 8 | ±20% | 3 | 6 | 0.255 | 14 | 47 |
| 10D-11 | 10 | ±20% | 3 | 6 | 0.275 | 14 | 47 |
| 12D-11 | 12 | ±20% | 2 | 4 | 0.462 | 14 | 48 |
| 16D-11 | 16 | ±20% | 2 | 4 | 0.47 | 14 | 50 |
| 20D-11 | 20 | ±20% | 2 | 4 | 0.512 | 15 | 52 |
| 22D-11 | 22 | ±20% | 2 | 4 | 0.563 | 15 | 52 |
| 30D-11 | 30 | ±20% | 1.5 | 3 | 0.667 | 15 | 2 |
| 33D-11 | 33 | ±20% | 1.5 | 3 | 0.734 | 15 | 52 |
| 50D-11 | 50 | ±20% | 1.5 | 3 | 1.021 | 15 | 52 |
| 60D-11 | 60 | ±20% | 1.5 | 3 | 1.212 | 15 | 52 |
| 80D-11 | 80 | ±20% | 1.2 | 2.4 | 1.656 | 15 | 52 |
| 13D | |||||||
| 1.3D-13 | 1.3 | ±20% | 7 | 14 | 0.062 | 13 | 60 |
| 1.5D-13 | 1.5 | ±20% | 7 | 14 | 0.073 | 13 | 60 |
| 2.5D-13 | 2.5 | ±20% | 6 | 12 | 0.088 | 13 | 60 |
| 3D-13 | 3 | ±20% | 6 | 12 | 0.092 | 14 | 60 |
| 4D-13 | 4 | ±20% | 5 | 10 | 0.12 | 15 | 67 |
| 5D-13 | 5 | ±20% | 5 | 10 | 0.125 | 15 | 68 |
| 6D-13 | 6 | ±20% | 4 | 8 | 0.17 | 15 | 65 |
| 7D-13 | 7 | ±20% | 4 | 8 | 0.188 | 15 | 65 |
| 8D-13 | 8 | ±20% | 4 | 8 | 0.194 | 15 | 60 |
| 10D-13 | 10 | ±20% | 4 | 8 | 0.206 | 15 | 62 |
| 12D-13 | 12 | ±20% | 3 | 6 | 0.316 | 16 | 62 |
| 15D-13 | 15 | ±20% | 3 | 6 | 0.335 | 16 | 60 |
| 16D-13 | 16 | ±20% | 3 | 6 | 0.338 | 16 | 60 |
| 20D-13 | 20 | ±20% | 3 | 6 | 0.372 | 16 | 65 |
| 30D-13 | 30 | ±20% | 2.5 | 5 | 0.517 | 16 | 65 |
| 47D-13 | 47 | ±20% | 2 | 4 | 0.81 | 17 | 65 |
| 120D-13 | 120 | ±20% | 1.5 | 3 | 2.124 | 16 | 65 |
| 15D | |||||||
| 1.5D-15 | 1.3 | ±20% | 8 | 16 | 0.048 | 18 | 68 |
| 1.5D-15 | 1.5 | ±20% | 8 | 16 | 0.052 | 19 | 69 |
| 3D-15 | 3 | ±20% | 7 | 14 | 0.075 | 18 | 76 |
| 5D-15 | 5 | ±20% | 6 | 12 | 0.112 | 20 | 76 |
| 6D-15 | 6 | ±20% | 5 | 10 | 0.155 | 20 | 80 |
| 7D-15 | 7 | ±20% | 5 | 10 | 0.173 | 20 | 80 |
| 8D-15 | 8 | ±20% | 5 | 10 | 0.178 | 20 | 80 |
| 10D-15 | 10 | ±20% | 5 | 10 | 0.18 | 20 | 75 |
| 12D-15 | 12 | ±20% | 4 | 8 | 0.25 | 20 | 75 |
| 15D-15 | 15 | ±20% | 4 | 8 | 0.268 | 21 | 85 |
| 16D-15 | 16 | ±20% | 4 | 8 | 0.276 | 21 | 70 |
| 20D-15 | 20 | ±20% | 4 | 8 | 0.288 | 17 | 86 |
| 30D-15 | 30 | ±20% | 3.5 | 7 | 0.438 | 18 | 75 |
| 47D-15 | 47 | ±20% | 3 | 6 | 0.68 | 21 | 86 |
| 120D-15 | 120 | ±20% | 2.5 | 5 | 1.652 | 22 | 87 |
| 20D | |||||||
| 0.7D-20 | 0.7 | ±20% | 12 | 24 | 0.018 | 25 | 89 |
| 1.3D-20 | 1.3 | ±20% | 9 | 18 | 0.037 | 24 | 88 |
| 3D-20 | 3 | ±20% | 8 | 16 | 0.055 | 24 | 88 |
| 5D-20 | 5 | ±20% | 7 | 14 | 0.087 | 23 | 87 |
| 6D-20 | 6 | ±20% | 6 | 12 | 0.113 | 25 | 103 |
| 8D-20 | 8 | ±20% | 6 | 12 | 0.142 | 25 | 105 |
| 10D-20 | 10 | ±20% | 6 | 12 | 0.162 | 24 | 102 |
| 12D-20 | 12 | ±20% | 5 | 10 | 0.195 | 24 | 100 |
| 16D-20 | 16 | ±20% | 5 | 10 | 0.212 | 25 | 100 |
Introduction
Power Thermistors, also known as Inrush Current Suppressors, are a sub-category of NTC (Negative Temperature Coefficient) thermistors. Power Thermistors utilize the self heating properties of NTC thermistors which self heat with current flow, dramatically decreasing resistance.
Power thermistors utilize the characteristics of NTC thermistors where a device heats up when current flows through it, and this self heating causes a dramatic decrease in resistance. Aolittel’s power thermistors are less expensive compared to conventional power thermistors, due to lower manufacturing costs achieved
Specification for Inrush Current Limiter Thermistor MF72 NTC 10D11
| Zero Power Resistance @ 25℃ | 10Ω±20% |
| Approx. Resistance @ Max Current | 3A |
| Thermal Recovery Time Coefficient | 14 |
| Thermal Dissipation Constant | 47 |
| Operating Temperature | -55~ +200 degree |
| B value | 2800k±10% |
